Product Overview:

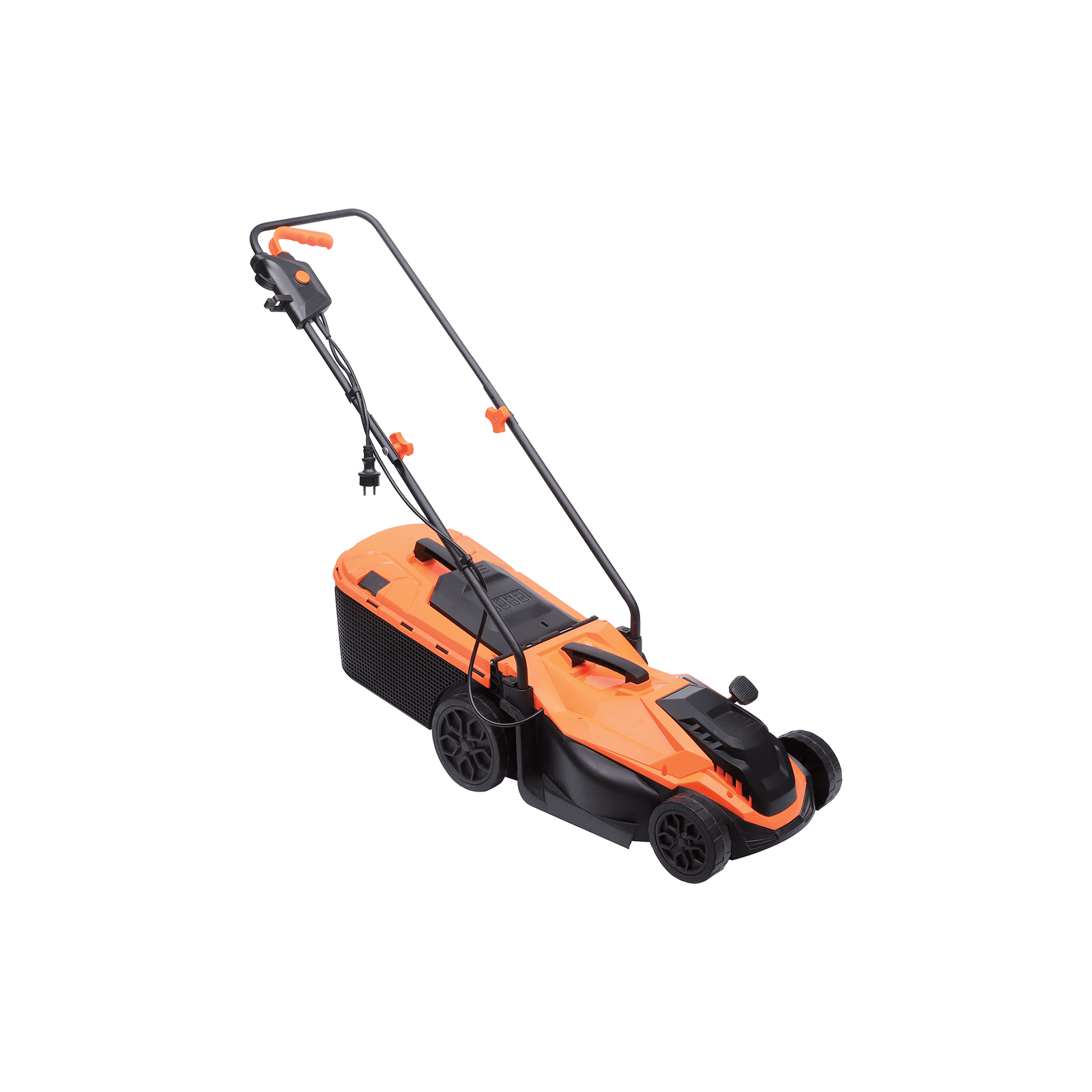

Keep lawns neat, healthy, and beautifully manicured with the CYLM01 Electric Lawn Mower. Featuring versatile power configurations from 1,200W to 1,400W operating at a high no-load speed of 3,700 rpm, this compact mower utilizes a heavy-duty belt drive power transmission system for superior motor protection and smooth torque. Equipped with a 340mm cutting width, a hardened 40MnB manganese-boron steel blade, a 5-position single-lever central height adjustment (25–65mm), and a 30L collector box, model CYLM01 is a proven best-seller for global garden tool distributors and retailers.
Key Features:
- High-Performance Motor Options (1200W / 1300W / 1400W): Operates on 230-240V~50Hz power, delivering a brisk 3,700 rpm no-load speed for fast, effortless grass slicing.
- Motor-Protective Belt Drive System: Smooth belt drive transmission absorbs blade impacts from hidden rocks or roots, preventing motor shaft damage and extending tool lifespan.
- 5-Position Single-Lever Central Height Adjustment: Change cutting height simultaneously across all four wheels (25 / 35 / 45 / 55 / 65 mm) with one central hand lever—no tools needed.
- Hardened 40MnB Steel Blade: Precision blade forged from high-tensile 40MnB manganese-boron steel maintains a razor-sharp edge for clean, grass-healthy cuts.
- Spacious 30L Grass Collector: 30-liter capacity collection box minimizes empty-out stops, speeding up lawn care tasks.
- Smooth Maneuverability: Large 140mm front wheels and 180mm rear wheels handle bumpy, uneven lawns with stability and ease.
- Friction / Centrifugal Safety Brake: Dual safety braking system halts blade motion rapidly upon trigger release for complete operator safety.
Technical Specifications (Data Sheet):
- Model: CYLM01
- Voltage / Frequency: 230-240V ~ 50Hz
- Rated Power: 1,200 / 1,300 / 1,400W
- No-Load Speed: 3,700 rpm
- Brake System: Friction / Centrifugal Brake
- Power Transmission: Belt Drive
- Cutting Width: 340 mm
- Cutting Height: 25 / 35 / 45 / 55 / 65 mm
- Cutting Height Setting: 5-position, One-Lever Central Adjustment
- Blade Material: 40MnB Manganese-Boron Steel
- Collector Volume: 30 L
- Front Wheel Size: 140 mm
- Rear Wheel Size: 180 mm
- Container Loading (20’FT / 40’FT / 40’HQ): 266 pcs / 560 pcs / 640 pcs
OEM / ODM Customization Capabilities:
We offer complete end-to-end manufacturing and private-labeling solutions tailored to your brand requirements:
- Power & Cable Specifications: Choose 1200W, 1300W, or 1400W motor ratings; regional power cords certified with VDE, BS, SAA, or UL.
- Housing Color & Branding: Custom plastic deck/housing color matching (Pantone) and logo application via silk-screen printing or mold embossing.
- Grass Box Customization: Fabric, hybrid, or hard plastic collector boxes with custom brand logo printing.
- Bespoke Retail Packaging: Full 4-color custom display box design, user manuals, and shipping carton branding.
Why Choose Us?
- Certified Quality Assurance: Manufactured under ISO9001 guidelines and fully certified with CE, GS, and EMC standards for low warranty return rates.
- Factory-Direct Cost Advantage: Scalable manufacturing facilities deliver highly competitive wholesale pricing and sustainable profit margins.
- Motor Protection & Long Lifespan: Belt drive system dramatically reduces jobsite motor burnouts, enhancing your brand’s quality reputation.
- Optimized Logistics & Shipping: Engineered master carton packaging ensures safe ocean transit while maximizing container space (640 units / 40HQ).
FAQ
Q1: How does the Belt Drive transmission protect the lawn mower motor?
A: Unlike direct-drive mowers where blade impact forces travel straight into the motor shaft, a belt drive system absorbs shock loads when hitting hard obstacles (like rocks), preventing shaft distortion and motor burnout.
Q2: What is the benefit of One-Lever Central Height adjustment?
A: One ergonomic central lever simultaneously adjusts the deck height for all four wheels across 5 settings (25mm to 65mm), saving users time and effort compared to individual wheel adjustments.
Q3: Can we customize our own brand logo, deck color, and retail packaging?
A: Yes! We provide complete OEM/ODM services including custom plastic housing colors, silk-screened logos, regional power plugs, and bespoke 4-color retail box designs.
Q4: What is the Minimum Order Quantity (MOQ) and container load for CYLM01?
A: The standard MOQ for custom branding is 300–500 units. Container loading capacities are 266 pcs for 20FT, 560 pcs for 40FT, and 640 pcs for a 40HQ container.
